GATE Mechanical 2022 Set 1 | GA | Question: 7

Question

A rhombus is formed by joining the midpoints of the sides of a unit square.

What is the diameter of the largest circle that can be inscribed within the rhombus?

• A. $\dfrac{1}{\sqrt{2}}$
• B. $\dfrac{1}{2\sqrt{2}}$
• C. $\sqrt{2}$
• D. $2 \sqrt{2}$

Answer 1

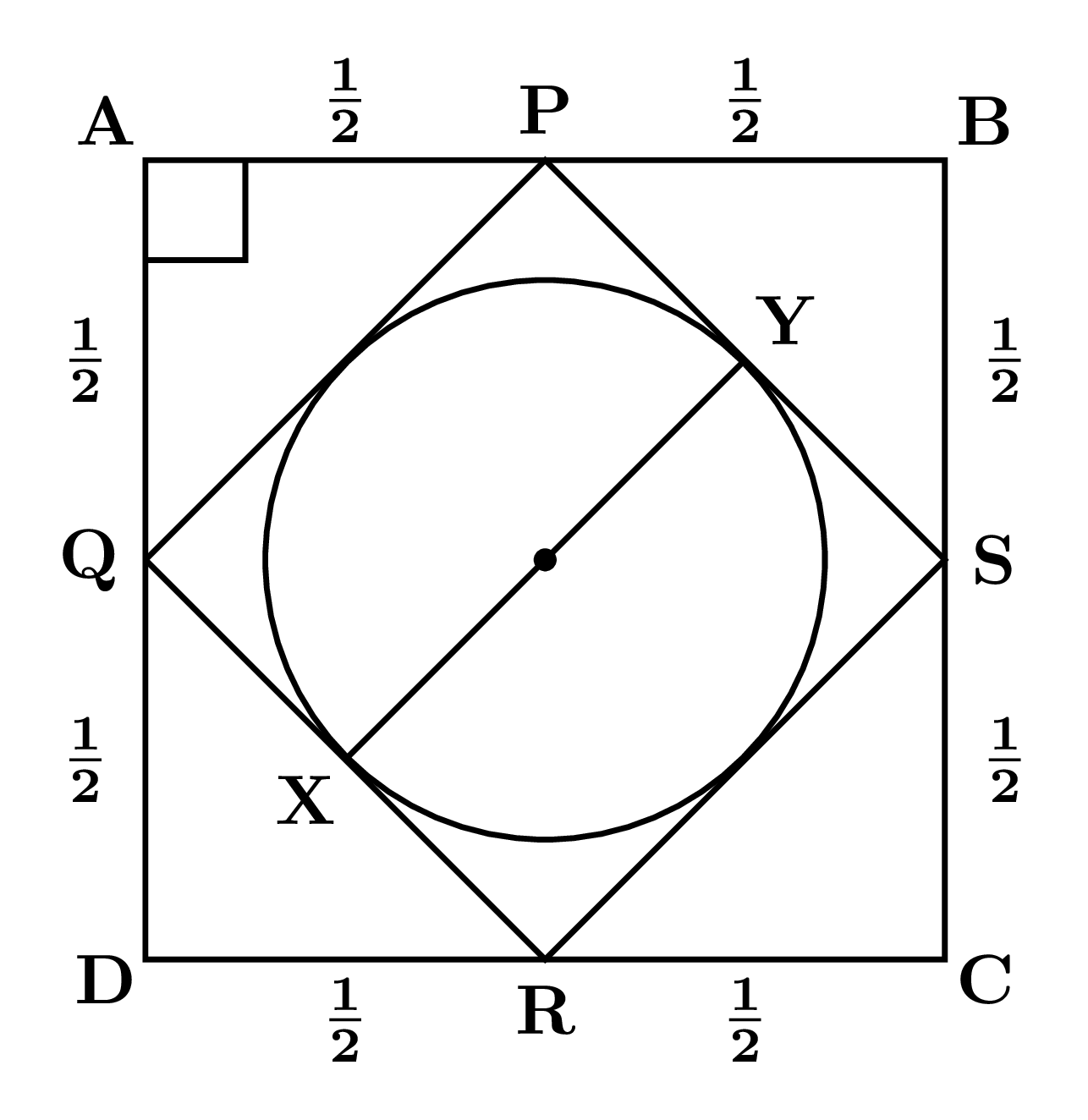

First, we can draw the diagram.

$\triangle \text{PAQ}$ is a right-angle triangle. So we can apply the Pythagorean theorem.

${\color{Green}{(\text{Hypotenuse})^{2} = (\text{Perpendicular})^{2} + (\text{Base})^{2}}}$

$\Rightarrow (\text{PQ})^{2} = (\text{AQ})^{2} + (\text{AP})^{2}$

$\Rightarrow  (\text{PQ})^{2} = \left(\frac{1}{2}\right)^{2} + \left(\frac{1}{2}\right)^{2}$

$\Rightarrow  \text{PQ} =  \sqrt{\frac{1}{4} + \frac{1}{4}}$

$\Rightarrow  \text{PQ} =  \sqrt{\frac{2}{4}}$

$\Rightarrow  \text{PQ} =  \sqrt{\frac{1}{2}}$

$\Rightarrow {\color{Blue}{\boxed{ \text{XY} =  \frac{1}{\sqrt{2}}}}} \quad [{\color{Red}{\because \text{PQ = XY}}}]$

$\therefore$ The diameter of the largest circle that can be inscribed within the rhombus is $ \dfrac{1}{\sqrt{2}}.$

Correct Answer $:\text{A}$
