GATE Mechanical 2022 Set 2 | Question: 46

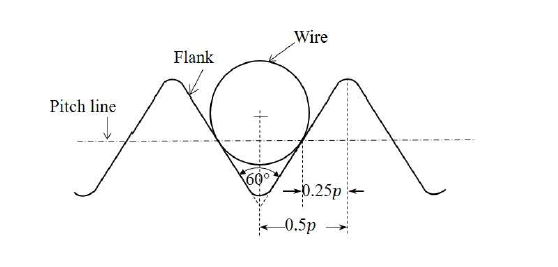

The best size wire is fitted in a groove of a metric screw such that the wire touches the flanks of the thread on the pitch line as shown in the figure. The pitch $(p)$ and included angle of the thread are $4$ $\text{mm}$ and $60^{\circ}$, respectively. The diameter of the best size wire is _______________ $\text{mm}$ (round off to $2$ decimal places).

in Others
edited
