GATE Mechanical 2022 Set 1 | GA | Question: 5

• moved by
1,683 views
4 4 votes

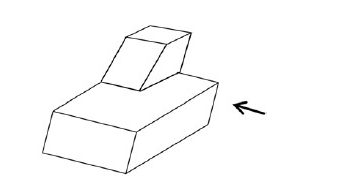

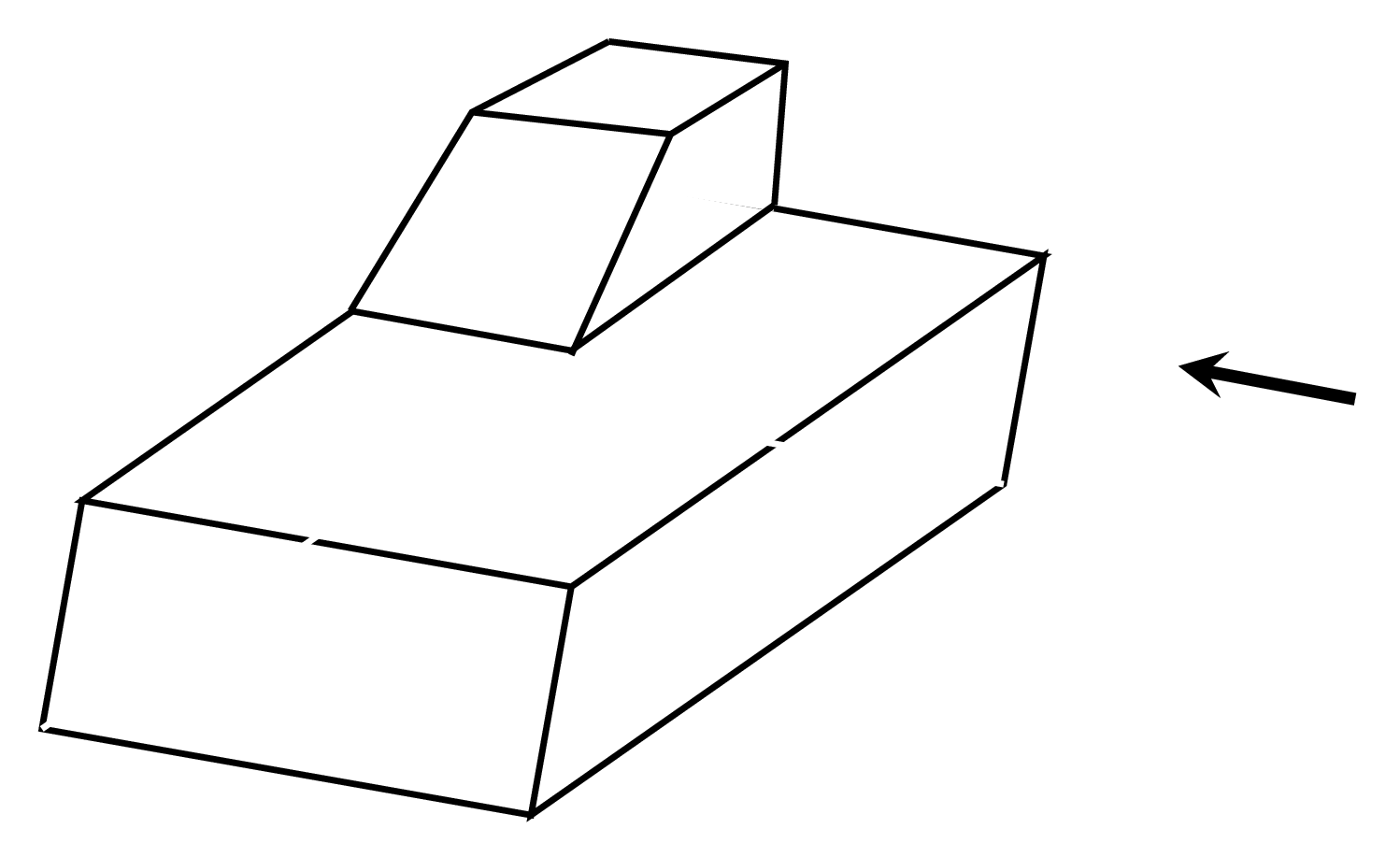

A block with a trapezoidal cross-section is placed over a block with rectangular cross section as shown above.

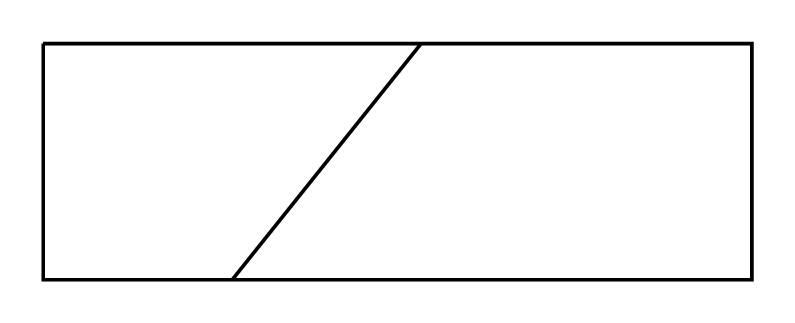

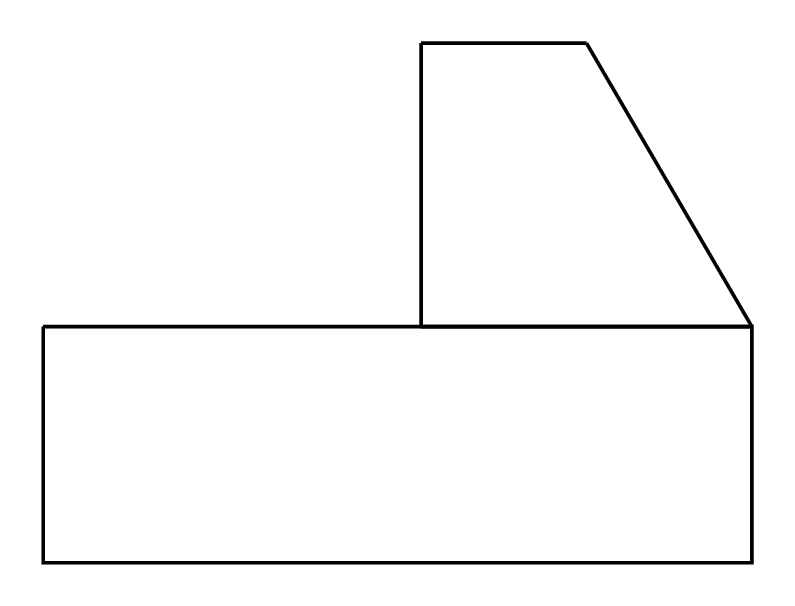

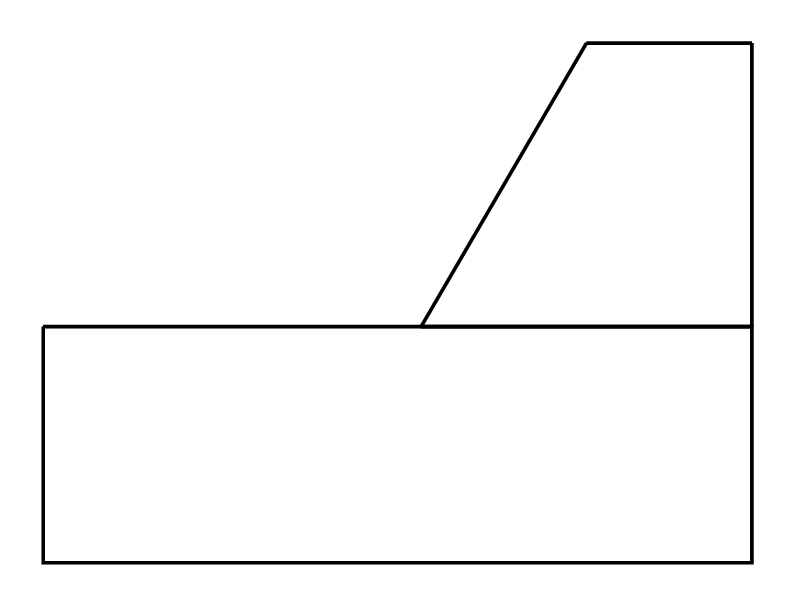

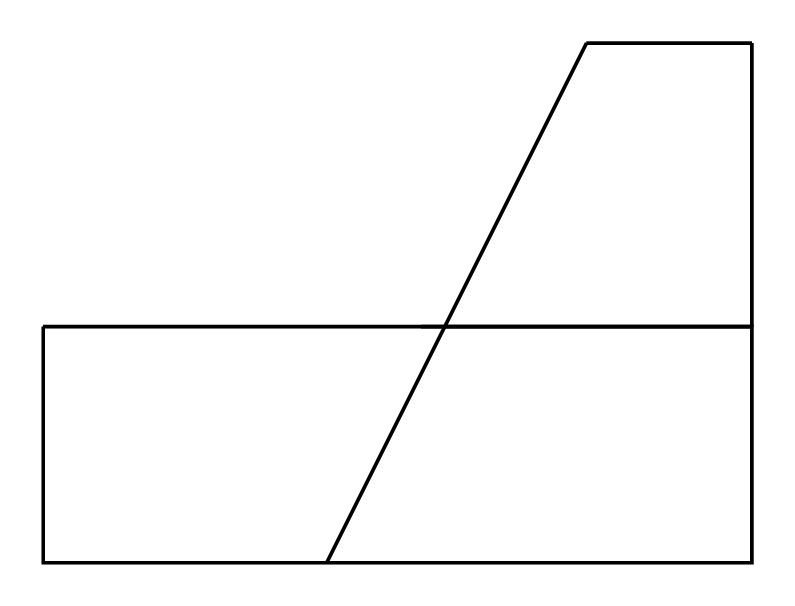

Which one of the following is the correct drawing of the view of the $\text{3D}$ object as viewed in the direction indicated by an arrow in the above figure?

2 Answers

Best answer
5 5 votes

Given that,

From the arrow given, we can see the side view only. So, the two-dimensional view will be a rectangle placed over a trapezium.

Correct Answer $:\text{A}$

• selected by
