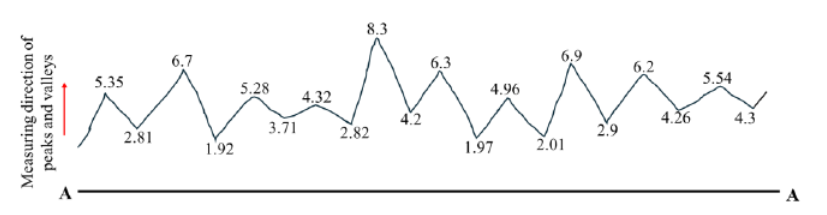

0 0 votes A two-dimensional surface profile is obtained over a sampling length by using a contact type stylus profilometer as shown in the figure below. A line AA parallel to the general lay of the trace is considered. The true heights from AA to the peaks and valleys (in $\mu \mathrm{m}$ ) in the trace are also shown in the figure (not to scale).The ten-point height average in $\mu \mathrm{m}$ is$4.57$$5.99$$3.09$$2.90$ Metrology and Inspection gateme-2026 metrology-and-inspection numerical-answers engineering-materials + – ♦gatecse 82 views answer comment Share Follow Add Sync Questions 0 reply Please log in or register to add a comment.
