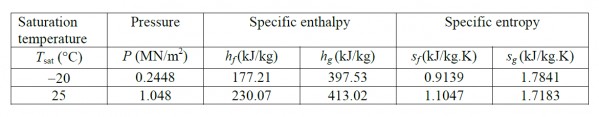

A heat pump with refrigerant $R22$ is used for space heating between temperature limits of $−20^\circ C$ and $25^ \circ C$. The heat required is $200 MJ/h$. Assume specific heat of vapour at the time of discharge as $0.98 kJ/kg.K$. Other relevant properties are given below. The enthalpy (in $kJ/kg$) of the refrigerant at isentropic compressor discharge is _______

Please log in or register to answer this question.
