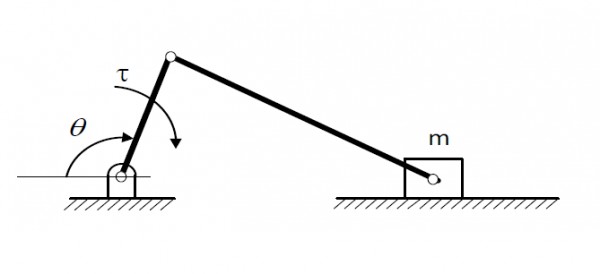

0 votes 0 votes Consider a slider crank mechanism with nonzero masses and inertia. A constant torque $\tau$ is applied on the crank as shown in the figure. Which of the following plots best resembles variation of crank angle, $\theta$ versus time Applied Mechanics and Design gateme-2015-set1 applied-mechanics-and-design mechanics-of-materials + – Arjun asked Feb 24, 2017 • recategorized Mar 4, 2021 by Lakshman Bhaiya ♦Arjun 28.5k points answer See all 0 reply
