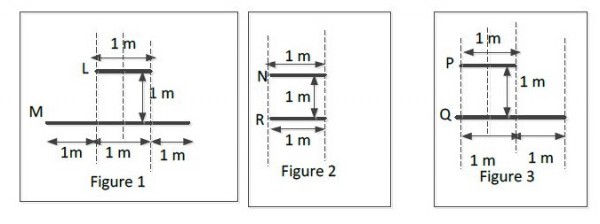

Three sets parallel plates $LM$, $NR$ and $PQ$ are given in Figures $1$, $2$ and $3$. The view factor $F_{IJ}$ is defined as the fraction of radiation leaving plate $I$ that is intercepted by plate $J$. Assume that the values of $F_{LM}$ and $F_{NR}$ are $0.8$ and $0.4$, respectively. The value of $F_{PQ}$ (round off to one decimal place) is ____________

recategorized by

Please log in or register to answer this question.

Answer:
